High Precision V-Cutting Machine , Hand Cutting machine CWV-2A

1セット
MOQ
Negotiable
価格
High Precision V-Cutting Machine , Hand Cutting machine CWV-2A
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
ハイライト:

pcb cutter

,

depaneling machine

基本情報
起源の場所: 中国
ブランド名: Chuangwei
証明: CE and certificate of registion
モデル番号: CWV-2A
お支払配送条件
パッケージの詳細: Plywoodenの場合
受渡し時間: 3日はの後の支払を受け取ります
支払条件: T/T L/C paypal西連合クレジット カード
供給の能力: 300セット月
製品の説明

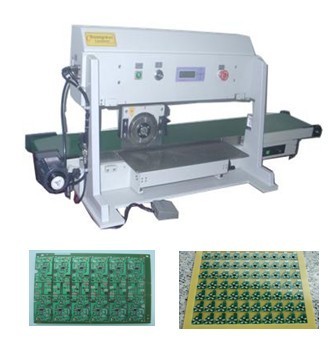

High Precision V-Cutting Machine , Hand Cutting machine CWV-2A



Quick Detail:



1. Separate pre-scored PCB assembly without stress on either PCB or component

2. One touch programming of cut length with digital display

3. Separating speed is adjusted by a rotary knob

4. Handle Intermittent scoring or cut-outs

5. Board with projected component can be cut precisely

6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

7. Optional PCB conveyor belt to remove finished board

8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out .





Specifications:



Model:

CWV-2A

Size:

780 X 460X 560mm

The Longest Minimize:

460mm

Minimize Speed:

100/200/300/500mm/s

Minimize thickness:

0.6-3.5mm

Machine Weight:

55Kg





Competitive Advantage:



1. CWV-2A  Pcb depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme
